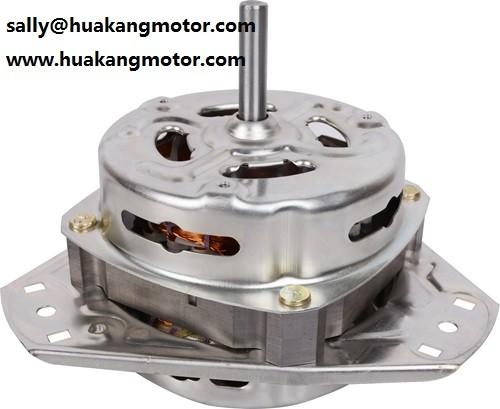

AC Electric Single Phase Motor in Washing Machine Parts HK-078T
Quick detail
- washing machine motor parts
- Single-phase 4 pole spin motor
- excellent performance and smooth running
- 20 years professional experience for Single-phase washing machine
parts
- top quality Lamination electric motor parts
1.Features
2.Advantages
1) We are one of big manufacture for producing washing machine
motor,wet grinder motor and air condition motor in huzhou,zhejiang.
with 250 Worker,more than 20 years motor experience.
2)8000pcs per day production capacity,2 hours to shanghai Port
port.3 hours to Ningbo port. Always force on delivery time and
quality to get so many long-term cooperation customers.We hope can
to be your one of partner to grow each other business together.
3) Safe and reliable, low noise, good starting, long life, etc.
4) Our products pass the CE/CCC/ ISO9001/TUV/BV/ IEI/ROHS
5) The motor can be designed and produced according to your
request.
6) We will send you some samples for your further inspecting.
7) We have more detailed specifications.If you are interested in,
please mail us.
3.More detail
More Specifications: |
Product Name | Spin motor |
Voltage | 100V, 110V, 127V, 220V, 230V, 240V, 220-240V |
Frequency | 50Hz, 60Hz, 50/60Hz |
Power | 25-90W |
Material | Stator lamination: Silicon steel Q195 |
Rotor lamination: Silicon steel Q195 |
Rotor end ring: primary ingot |
Shaft: Steel #45 C D: Φ10 or Φ12 |
Cover(top/bottom): galvanized steel or aluminium |
Winding: Enamelled round copper/aluminium/copper clad aluminium
wire |
Insulation class | Class B. Class E or Class F |
Pole | 2poles 4 pole or 6 pole |
Bearing type | Oil impregnate Bush bearing or ball bearing based on customer’s
request |
Noise | <55db |
4.The processing of producing motors
5. Packing detail
4 pcs one carton with foam
one container (20GP)containing 5000-6000pcs
One pallet 294 pcs for spin motor.
One pallet 216 pcs for wash motor.
One container (20GP)containing 20 pallets
Can be customized according to customer’s requirement packaging.
6. Why choose us
1) Safe and reliable, low noise, good starting, long life, etc.
2) All our products pass the CE/CCC/ROHS/SGS/ISO9001/TUV/BV
3) This motor can be designed and produced according to your
request.
4) We will send you some samples for your further inspecting.
5) We have more detailed specifications.If you are interested in,
please mail us
sally@huakangmotor.com
www.huakangmotor.com
7.Certification
